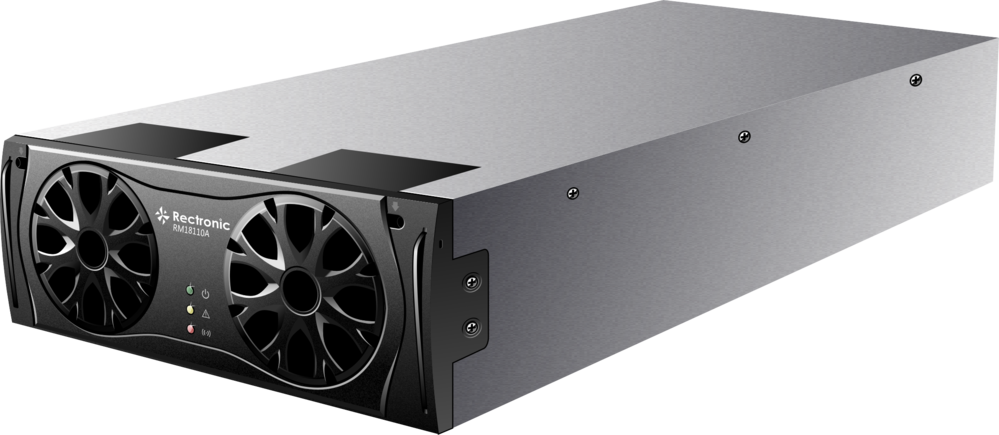

Rectronic Technologies RM18110A 1.8kW 110V Rectifier Module

The RM18110A is a telecommunications grade rectifier with the following features:
1. Hot pluggable
2. Forced Air Cooled
3.Thermally Protected
4. Power Factor Corrected
5. Wide input AC Voltage
6. Constant Power Output Limit
7. Input/Output Voltage and Current Protected
8. Active Load Sharing
9. Serial alarm and control interface
10. Microprocessor controlled

Enquire now

Technical data

AC Input

  • Nominal Voltage: 220VAC
  • Voltage Range: 90-300VAC(reduced power below 175VAC)
  • Input Current: 11A Max.
  • Frequency Range: 45-65Hz
  • Power Factor: >0.99
  • Efficiency: >92%

DC Output

  • Nominal Voltage: 110VDC
  • Voltage Range: 90-155VDC
  • Output Ratings: Constant Current:90-110VDC(16.4A) and Constant Power:110-155VDC(1800W)

Environmental

  • Operating Temperature: -25 to +65℃(maximum output power is derated above 55℃)
  • Storage Temperature: -45 to +70℃
  • Humidity: 5-95%RH(non-condensing)
  • Altitude:

Mechanical

  • Dimensions,W,H,D: 105mm,40mm,250mm
  • weight: 1.5kg
